Engineered with sharp conical penetrators, weather-sealed PC/ABS encapsulation, and dual-frequency HF/UHF options, the innovative nail-style transponders deliver lifetime identification for forestry, timber supply chains, wooden pallets, and horticultural assets.

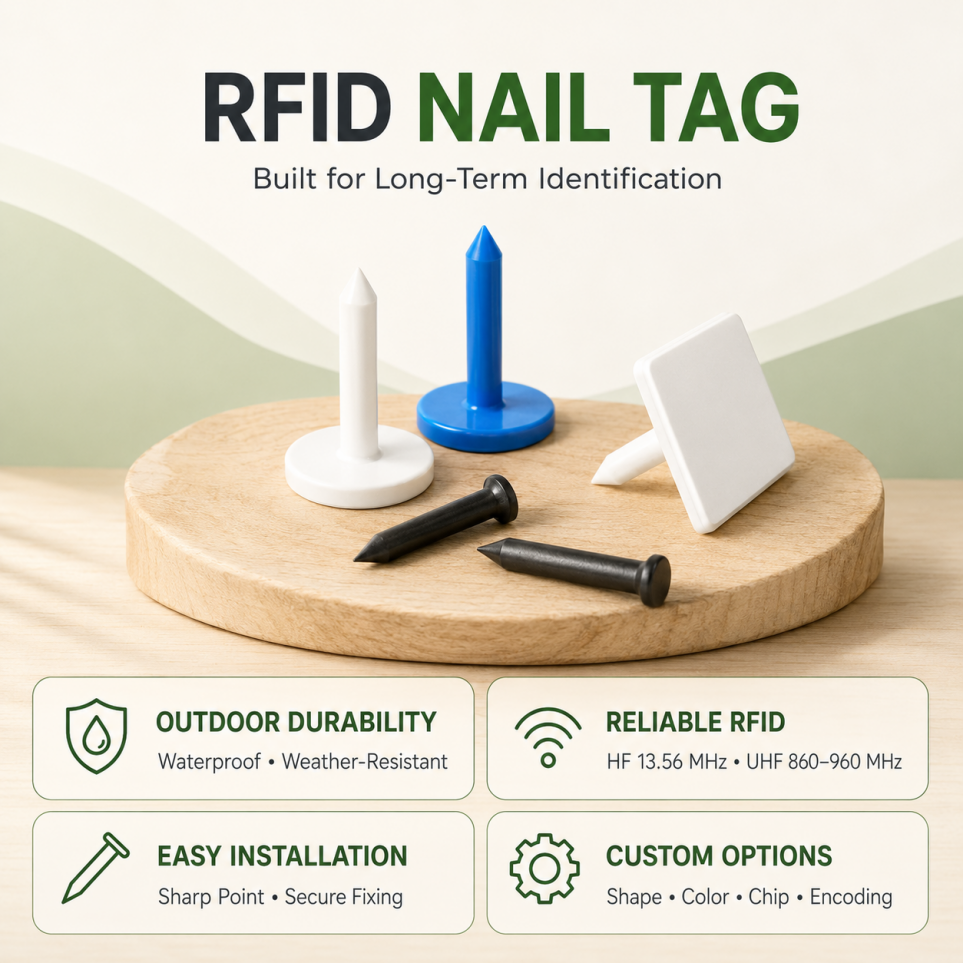

Figure 1. The RFID Nail Tag Series by Chengdu Mind IOT Technology Co.,Ltd.: built for long-term outdoor identification with sharp conical tips, weather-resistant encapsulation, and versatile mounting profiles.

CHENGDU, China, September 27, 2026 – Chengdu Mind IOT Technology Co.,Ltd. (also operating as Chengdu Mind Internet of Things Technology Co., Ltd.), an established pioneer in RFID hardware manufacturing since 1996, has officially announced the global release of its specialized RFID Nail Tag Series. Specifically developed for outdoor wooden asset tracking, forestry lifecycle management, and supply chain logistics, the ruggedized nail transponders provide an indelible, contactless digital identity that permanently embeds into wood grain, surviving years of severe weather exposure, thermal fluctuations, and mechanical vibration.

Managing natural assets such as standing commercial forests, municipal heritage trees, harvested timber logs, wooden utility poles, and logistics pallets has historically posed severe identification challenges. Conventional barcode paper labels peel away in rain; surface spray paints fade under UV radiation; and external hanging metal tags corrode or become detached during transportation. By integrating contactless transponders directly into an impact-resistant nail form factor, Chengdu Mind IOT Technology Co.,Ltd. offers an industrial-grade solution that transforms static wood into intelligent, trackable data endpoints.

Four Distinct Mechanical Styles Engineered for Every Wooden Asset

To accommodate varying timber densities, installation clearances, and reading geometries, the RFID Nail Tag Series is manufactured across four standard mechanical profiles:

• Round Head – Large (Ø28 mm): Designed with a wide 28 mm circular flange that provides strong holding power and high visual prominence. Measuring 41 mm in total height with a 6 mm shaft diameter, this style is ideal for municipal tree census projects, national park conservation, and large-diameter utility poles where maximum retention against bark growth is essential.
• Round Head – Compact (Ø22 mm): Featuring a streamlined 22 mm head diameter with a 41 mm total height and 6 mm shaft, the compact round head balances secure retention with a lower profile, making it the preferred choice for nursery trees, horticultural plants, and medium-sized lumber.
• Square Head (53 x 53 mm): Engineered with an expansive 53 x 53 mm flat surface area and a 36.2 mm nail height with a 7 mm shaft, this configuration serves as a dual visual-digital marker. The large flat face allows high-contrast laser marking of human-readable serial numbers, corporate logos, and high-density 2D barcodes, providing instant visual reference alongside contactless RFID scanning.
• Solid Nail Style (38 mm): A slender, high-tensile cylinder measuring 38 mm in total length with a 6 mm body diameter and a 7.8 mm low-profile tail. Once driven into wood, the solid nail sits completely flush with the timber surface, preventing snagging or blade damage during sawmill processing, lumber stacking, and automated warehouse conveyor transit.

In addition to standard profiles, Chengdu Mind IOT Technology Co.,Ltd. provides bespoke structural design services to create customized shank lengths, head diameters, and barb configurations tailored to specialized customer requirements.

Rugged Outdoor Durability & Industrial Polymer Encapsulation

Outdoor assets must endure harsh environmental stress for decades. The RFID Nail Tag Series is engineered from industrial-grade polymers tailored to long-term field survivability:

• Waterproof and Weather-Sealed: Fully sealed internal antenna and microchip assembly rated IP67/IP68, guaranteeing complete protection against rain, snow, heavy humidity, groundwater immersion, and seasonal freeze-thaw cycles.
• UV and Corrosion Resistance: High-grade Polycarbonate (PC) used in the round and square styles and heavy-duty Acrylonitrile Butadiene Styrene (ABS) in the solid nail style provide exceptional resistance to ultraviolet degradation, organic sap acids, soil microbes, and chemical wood preservatives.
• Sharp Conical Tip Structure: Each nail tag features an ultra-sharp conical tip that penetrates wood fibers smoothly during installation, anchoring firmly within the grain without splitting delicate timber.
• Optional Extreme-Condition PPS Material: For chemical wood treatment autoclaves or high-temperature drying kilns, an optional Polyphenylene Sulfide (PPS) housing is available upon project request.

Dual Frequency Options: HF 13.56 MHz and UHF 860-960 MHz

The RFID Nail Tag Series supports both high-frequency and ultra-high-frequency open standards, ensuring seamless compatibility across different operational workflows:

• HF 13.56 MHz (ISO 14443A / ISO 15693): Optimized for close-proximity tap-and-verify operations (0 to 5 cm reading range). Field technicians, arborists, and nursery managers can read and update individual tree health records, botanical data, or maintenance logs using standard NFC-enabled smartphones or compact mobile readers without carrying bulky scanning equipment.
• UHF 860-960 MHz (EPC Class 1 Gen 2 / ISO 18000-6C): Built for high-speed, long-range asset auditing and bulk inventory scanning. In timber distribution yards and warehouse pallet racks, handheld UHF readers or gantry gate readers can capture dozens of tagged pallets or logs simultaneously from distances of several meters, accelerating stocktakes and eliminating manual bottlenecks.

Streamlined 5-Step Tagging Workflow

Deploying the RFID Nail Tag requires minimal tooling and training, enabling rapid implementation across expansive outdoor sites:

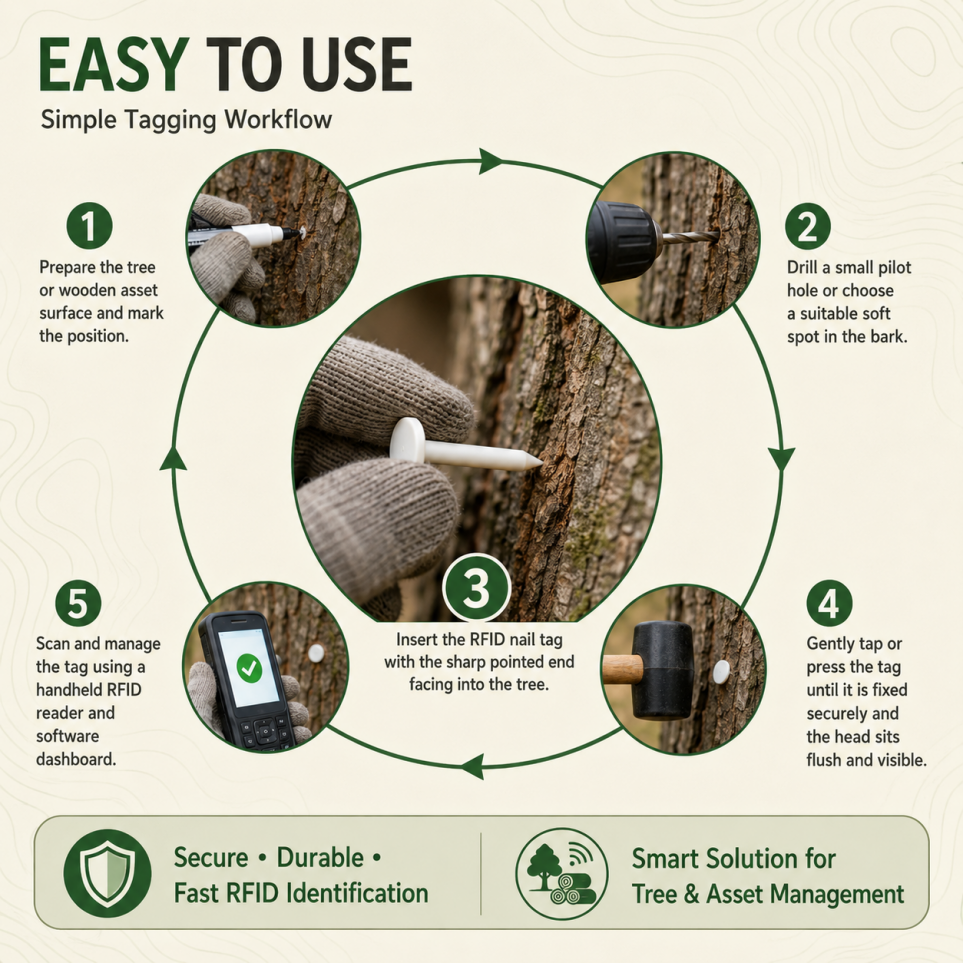

Figure 2. Standard 5-Step Deployment Workflow: (1) Prepare and mark the wooden surface; (2) Drill an optional pilot hole in dense hardwoods; (3) Insert the pointed nail tag; (4) Tap flush with a mallet; (5) Scan and manage via mobile reader.

• 1. Prepare Surface: Identify the tree, timber log, or pallet beam and mark the intended tagging point at eye level or a standardized scanning height.
• 2. Drill Pilot Hole: For dense hardwoods or dry structural timber, drill a small pilot hole using a portable drill; for softer live tree bark, the tag can often be positioned directly.
• 3. Insert Nail Tag: Place the sharp conical tip squarely into the pilot hole or target mark, ensuring perpendicular alignment with the wood grain.
• 4. Hammer Securely: Using a rubber or wooden mallet, gently tap the tag head until it rests firmly flush against the timber surface, establishing permanent mechanical grip.
• 5. Scan & Manage: Scan the newly installed tag using a handheld RFID reader or smartphone, bind the unique chip UID to the asset profile in the management software, and begin automated tracking.

Key Industry Applications

The RFID Nail Tag Series serves a wide range of green economy and supply chain sectors:

• Forestry Inventory & Tree Identification: Enables forestry authorities and municipal park departments to maintain permanent digital registries for ancient trees, urban greenery, biodiversity monitoring, and disease prevention programs.
• Timber Harvesting & Chain-of-Custody Tracking: Supports responsible forestry certification by tagging harvested logs at the felling site, ensuring full traceability through transport concessions, customs inspection, and sawmill processing to curb illegal logging.
• Wooden Pallet Pooling & Logistics: Provides an indestructible identification medium for logistics pallet pools, automated distribution centers, and shipping container bases, surviving high-impact forklift handling.
• Commercial Nursery & Horticultural Management: Tracks high-value ornamental trees, grafted fruit trees, and landscape specimens from propagation fields to retail distribution.
• Wooden Utility Infrastructure: Maintains inspection, treatment, and structural integrity logs for wooden power transmission poles, railway sleepers, wooden bridges, and architectural outdoor timber.

Technical Dimensions & Specifications

The physical dimensions of each profile are precisely calibrated to maintain structural integrity under impact while housing high-sensitivity internal copper and aluminum antennas:

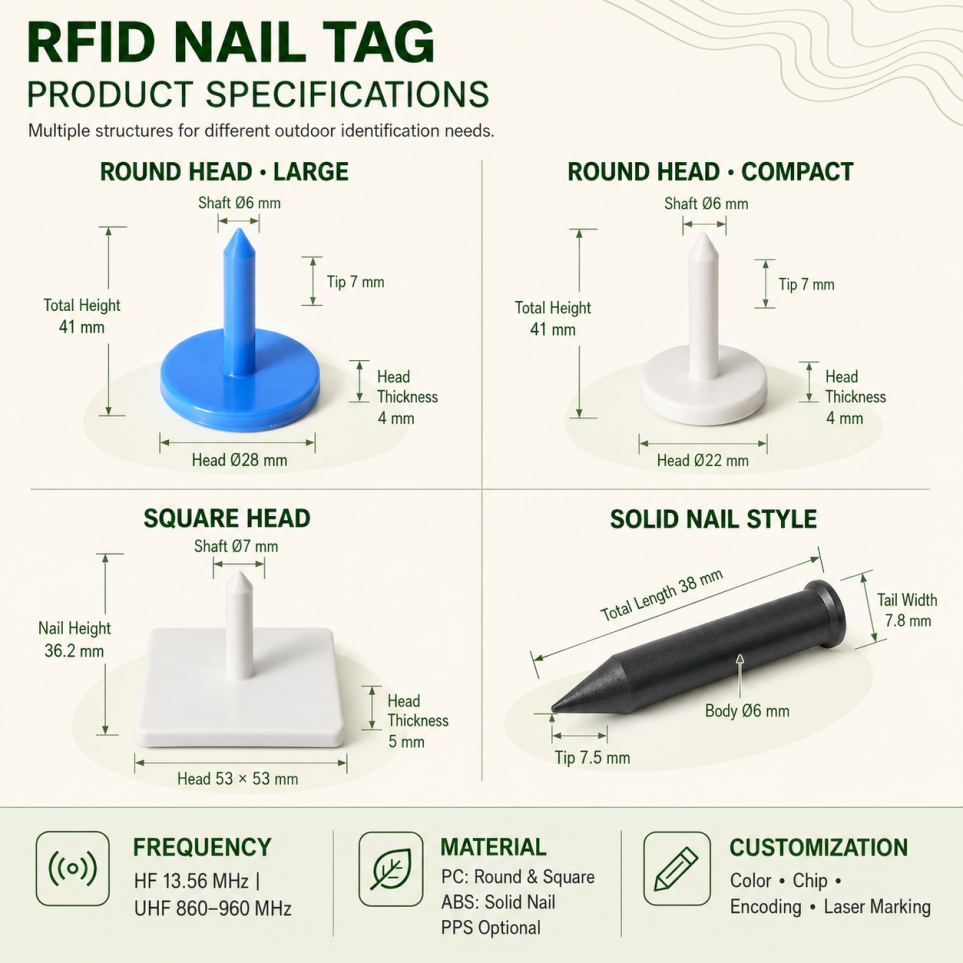

Figure 3. Dimensional schematics of the Round Head Large, Round Head Compact, Square Head, and Solid Nail Style transponders.

Customization Services & OEM/ODM Manufacturing Excellence

To meet project-specific visual identity and data integration guidelines, Chengdu Mind IOT Technology Co.,Ltd. provides full-scope OEM and ODM customization services:

• Laser Marking & Visual Codes: Permanent laser engraving of sequential serial numbers, project codes, high-resolution QR codes, and corporate branding onto the square and round tag faces.
• Chip Encoding & Data Pre-programming: Pre-encoding of custom EPC numbers, user memory partitions, or encrypted identification keys prior to dispatch.
• Custom Color Compounding: Supplied in standard White, Blue, and Black, with custom PMS corporate colors supported for color-coded asset status or visual zone demarcation.
• Custom Mold Tooling: Dedicated engineering support to develop bespoke nail lengths, head dimensions, and internal antenna layouts.

Manufacturing Prowess & Global Quality Standards

Founded in 1996, Chengdu Mind IOT Technology Co.,Ltd. operates a specialized production base spanning 20,000 square meters in Chengdu, western China. The facility operates 6 modernized, high-precision automated production lines, integrating microchip packaging, antenna ultrasonic embedding, high-pressure injection molding, automated testing, and laser engraving under a rigorous unified quality system.

The company maintains ISO 9001 quality management, ISO 14001 environmental management, and ISO 45001 occupational health and safety certifications. Export products adhere to international regulatory benchmarks, holding full CE, FCC, RoHS, and REACH compliance. With annual manufacturing capacity exceeding hundreds of millions of contactless cards, RFID labels, and specialized industrial tags, Chengdu Mind IOT Technology Co.,Ltd. guarantees steady supply, factory-direct pricing, on-time delivery, and comprehensive technical support.

About Chengdu Mind IOT Technology Co.,Ltd.

Established in 1996, Chengdu Mind IOT Technology Co.,Ltd. (Chengdu Mind Internet of Things Technology Co., Ltd.) is an international market leader in the research, design, and manufacturing of RFID transponders, smart cards, electronic tags, and specialized IoT hardware. Serving global clients across hospitality, forestry, logistics, manufacturing, and municipal infrastructure, the company delivers reliable, certified identification solutions backed by comprehensive OEM/ODM engineering capabilities.

For sample inquiries, technical documentation, or customized RFID nail tag quotations, please contact Chengdu Mind IOT Technology Co.,Ltd. through official corporate channels.
